Product Information

Product Description

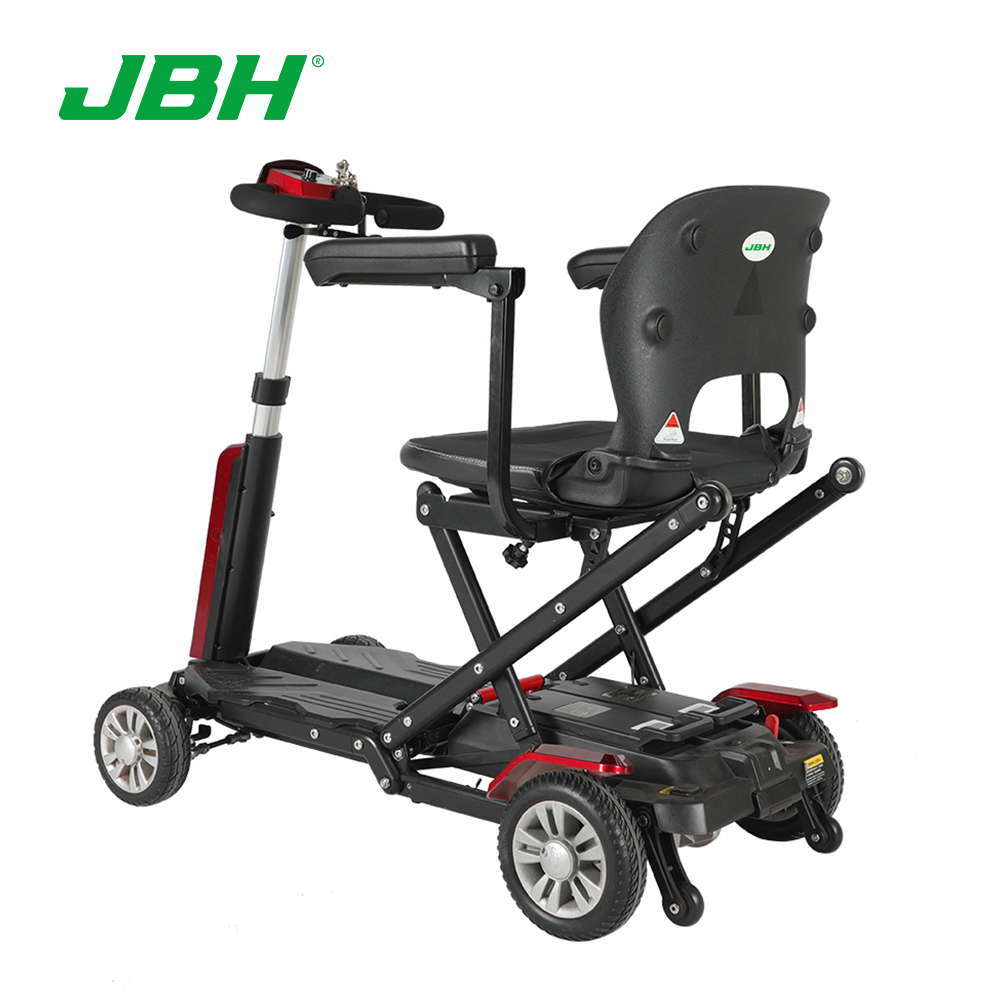

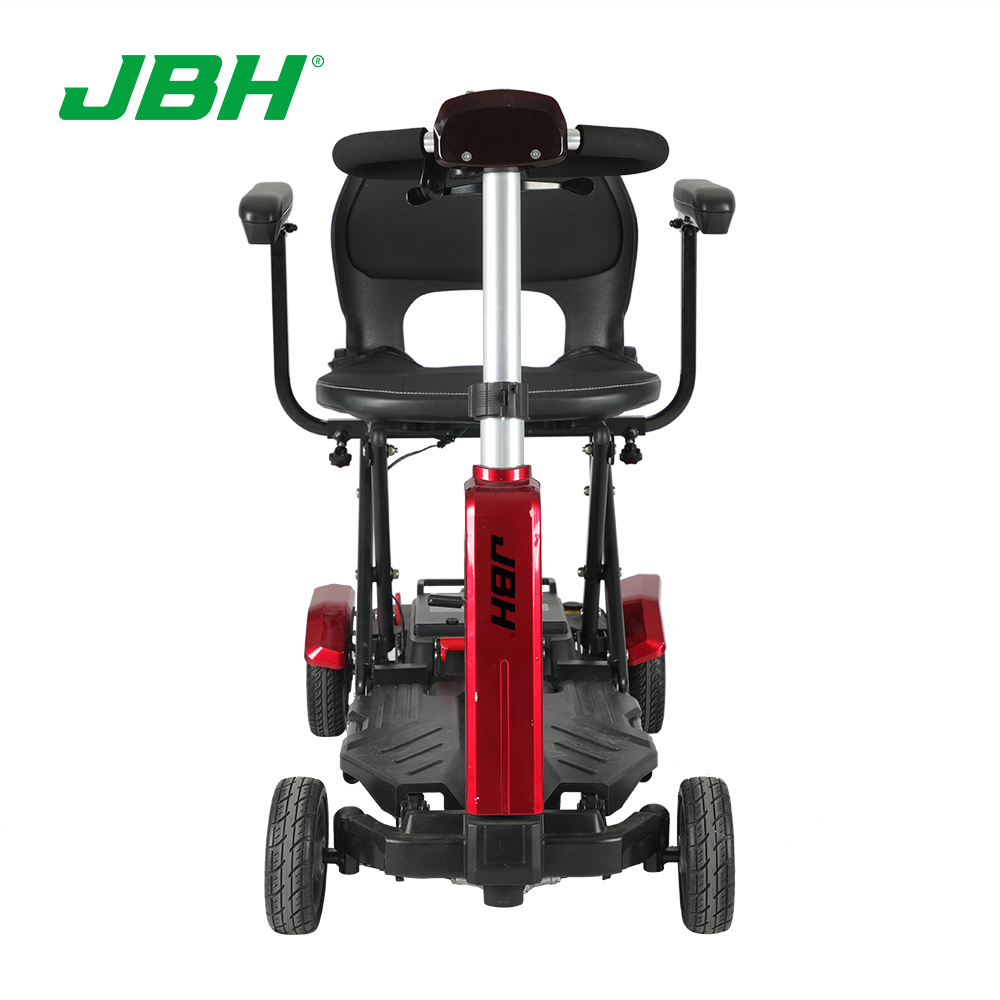

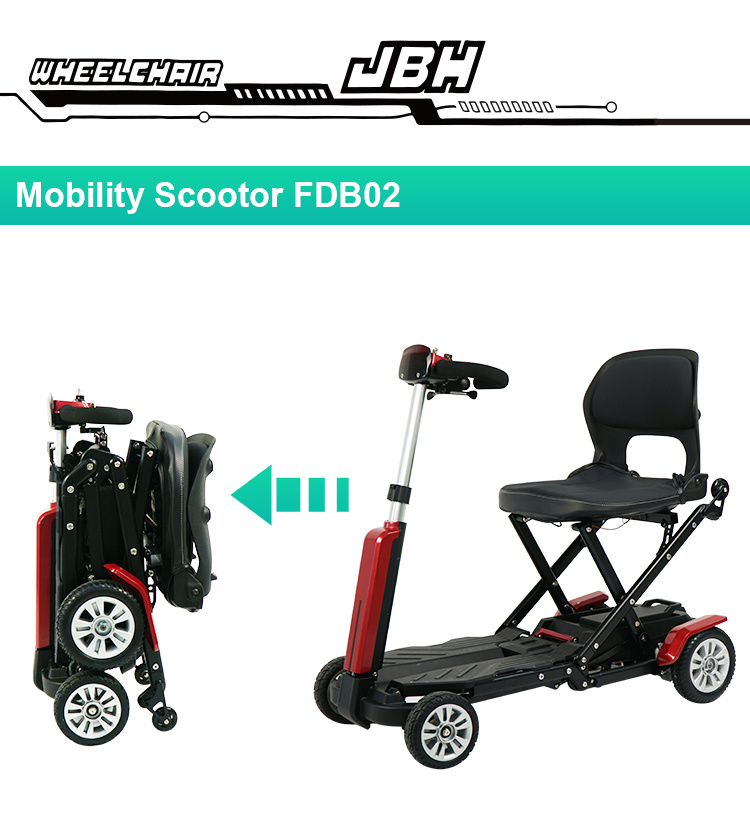

Romote-controlling Folding Mobility Scooter

Parameters:

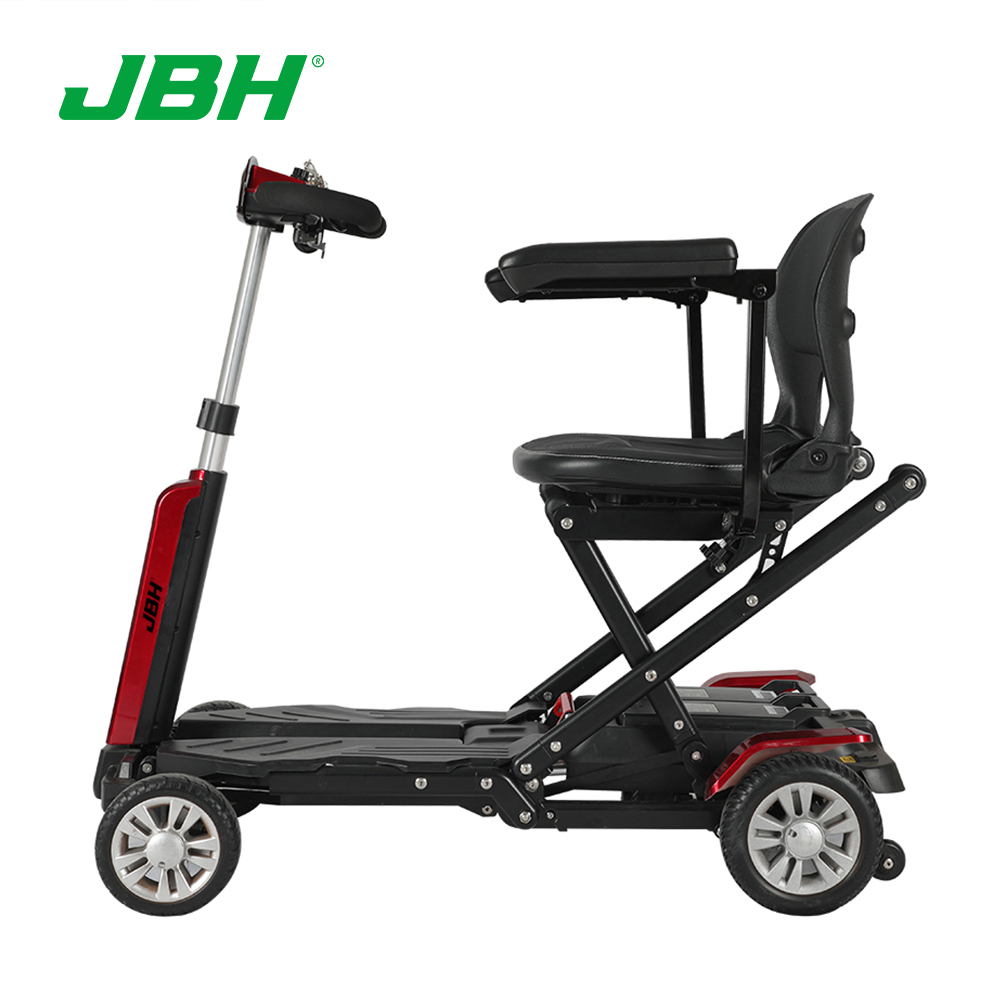

Unfolded size（LWH）	980490850 mm

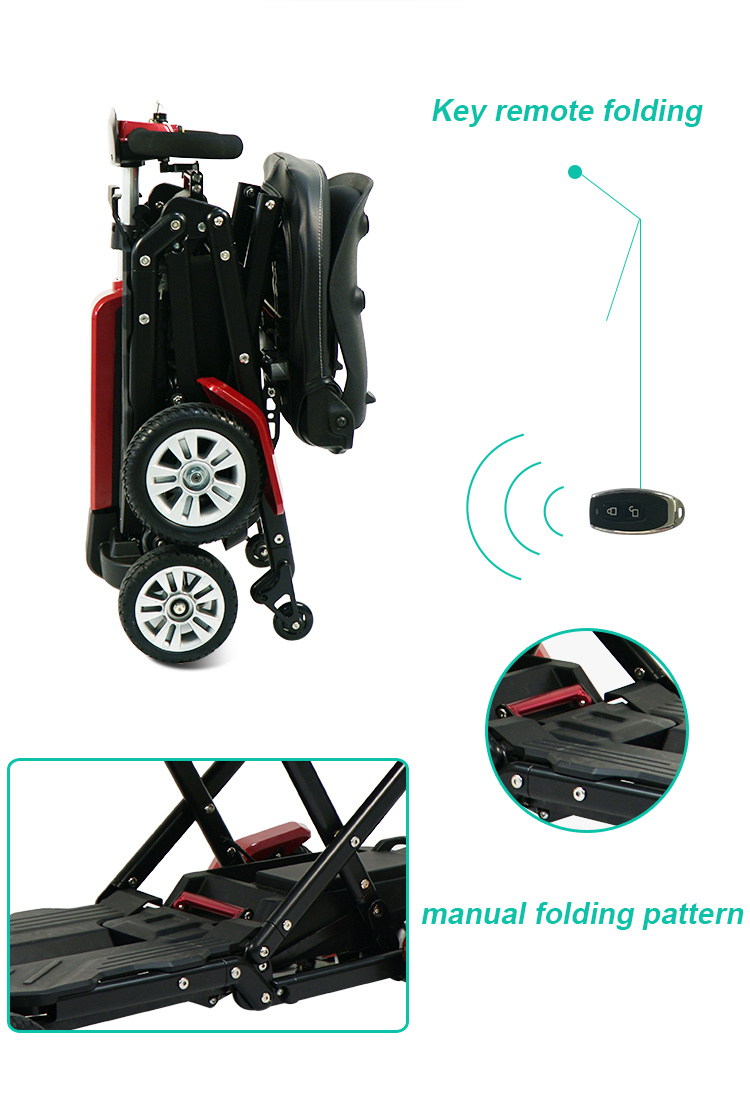

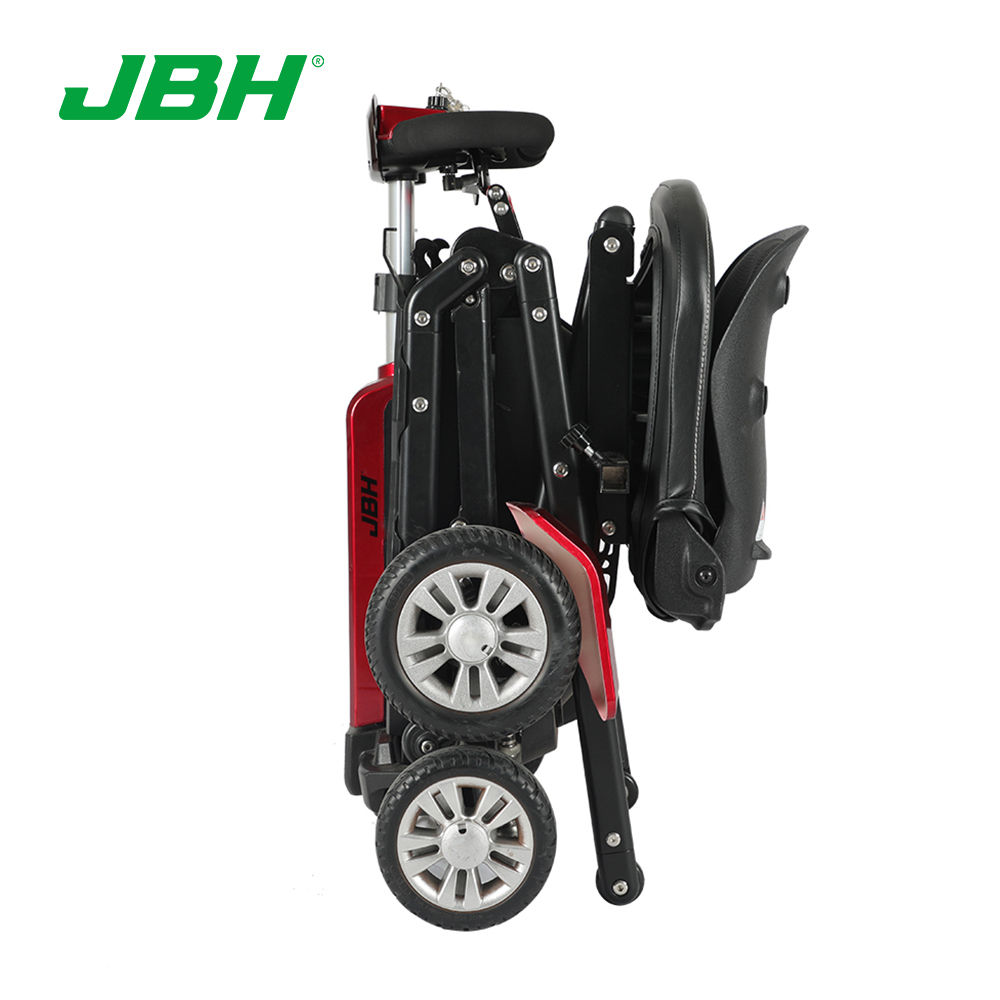

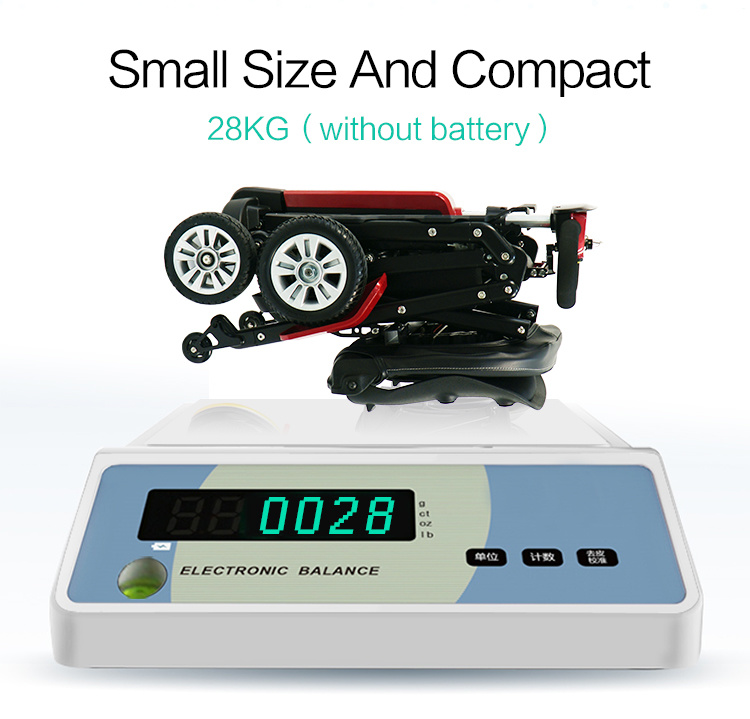

Folded Size(LWH)	390490720 mm
Carton Size（LWH）	590490850 mm
Max Load	120kg

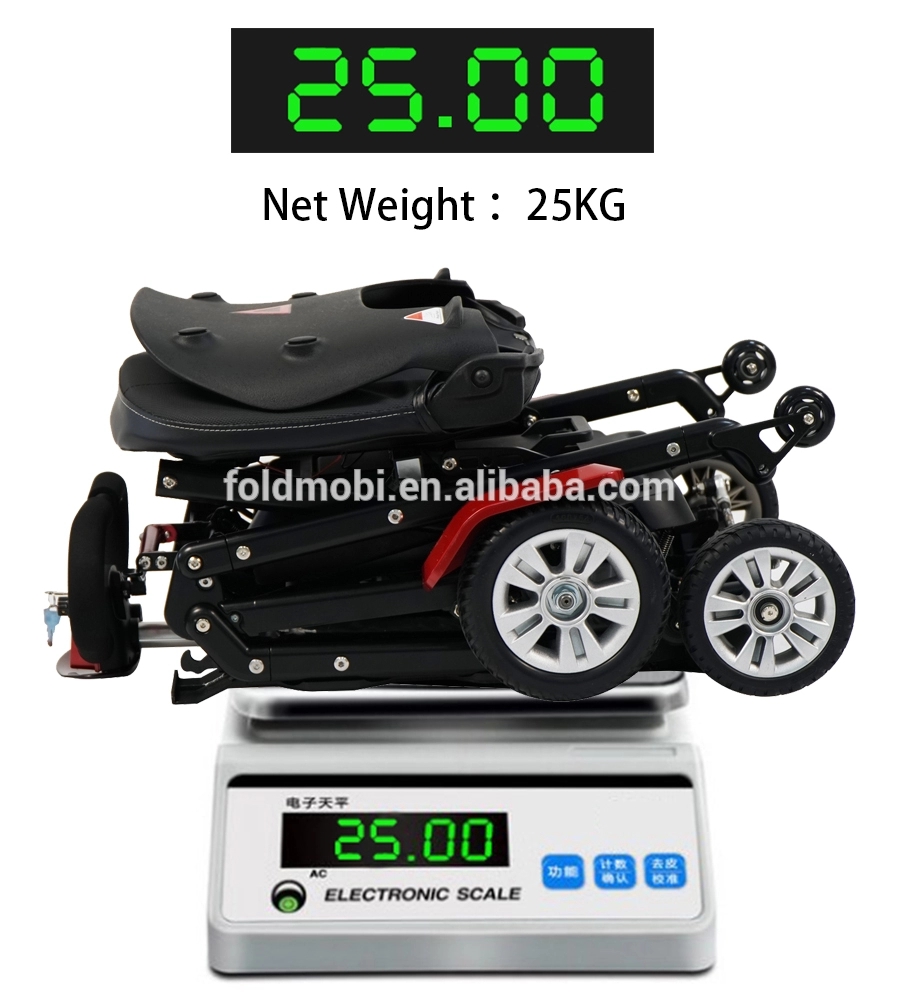

N.W.	27.5kg(Without Battery） 30.3kg(with 2 battery)
G.W.	38kg(pack in carton)
Armrest Width	460mm(Adjustable)
Seat width	460mm
Seat Depth	400mm
Seat Height	530mm
Motor:DC Brush Motor
Power	270 W
Voltage	DC 24V

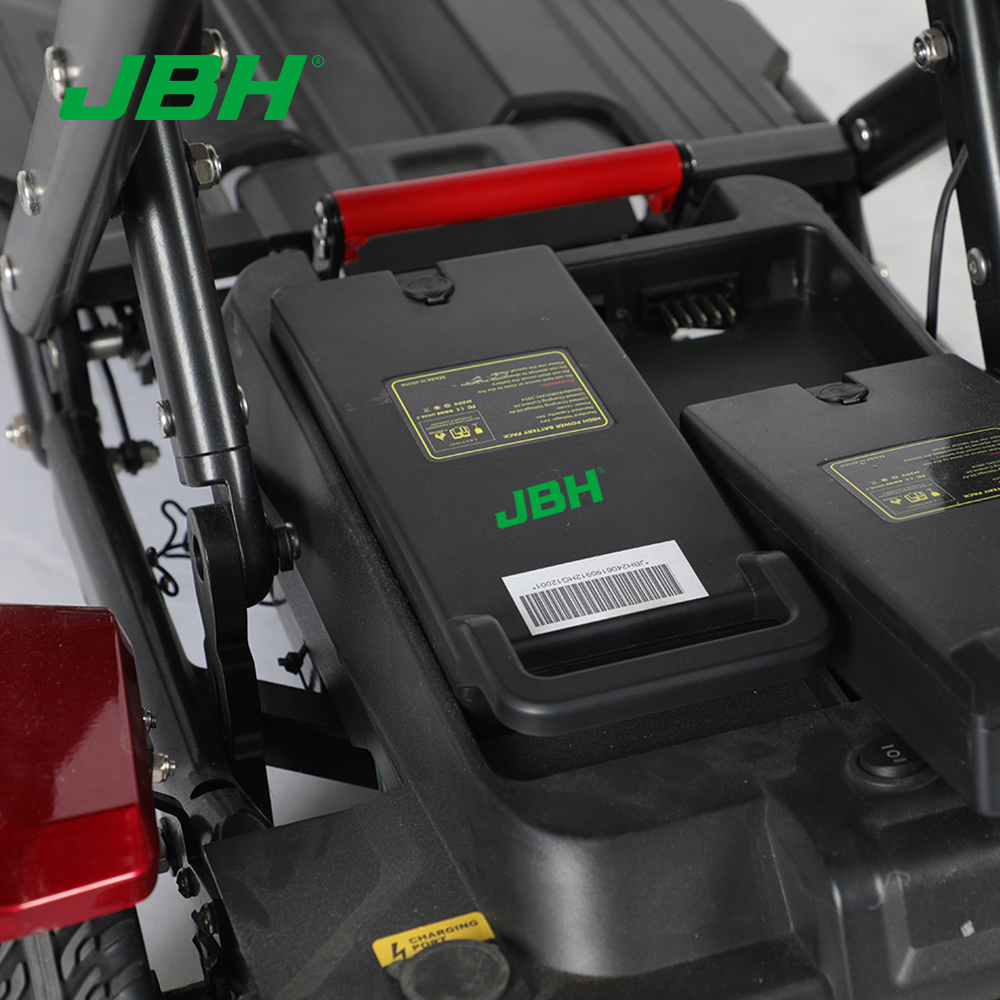

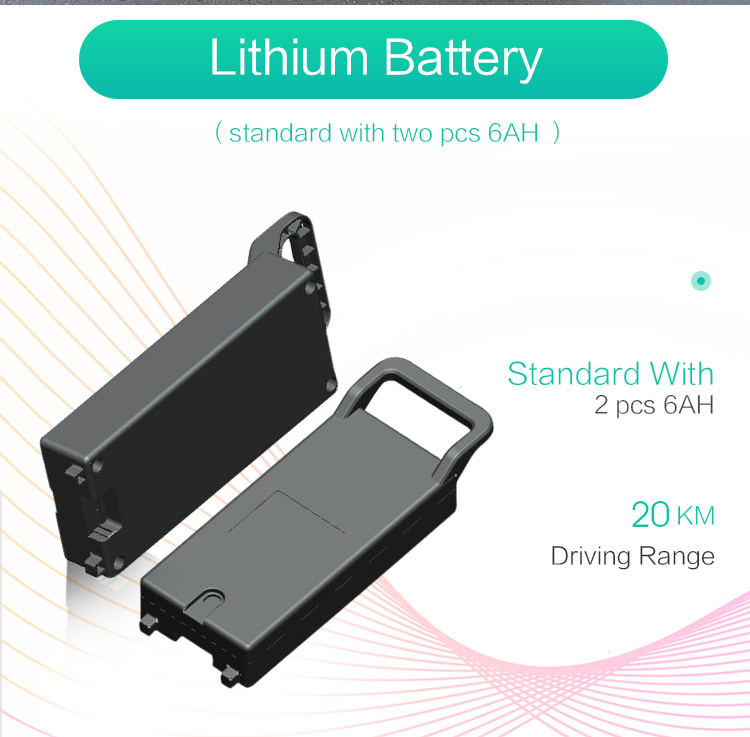

Battery:Li-ion battery
capacity	6 Ah
Voltage	DC 24V
Quantity	2 pieces
Controller:Brush/output
output voltage/current	DC 24V/30A
Electric pushrod
Input voltage/power24VCD/50W
push	2000N
speed	10MM/S
Charger:portable
input voltageAC：100～240V,50Hz
output voltage	29V
Front Tires	6.5" × 2"(163 mm x 50 mm) PU solid tires 2 PCs
Rear Tires	7.5" ×2.15"(190 mm x 54 mm) PU solid tires 2 PCs
Performance
max.speed≤6.0km/h
barrier height	40mm
barrier width	100mm
Gradeability	≤8°
Driving Range	25km
Use environment
temperature-25℃～50℃;
Air pressure	860hPa～1060hPa；
humidity	10%～80%；
Charge voltage	AC 100-240）V±10%,50±1Hz；
Battery voltage	DC 24 V（+5%，-10%）；
Motor power	270W
